PTFE Sliding Cum Spherical Bearings

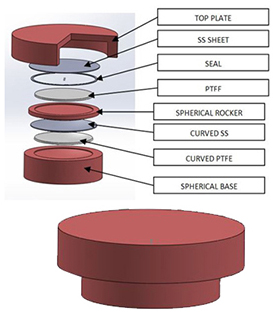

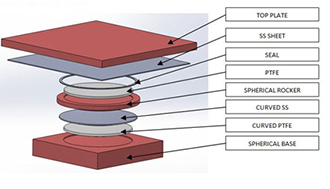

PTFE SPHERICAL BEARING is a bearing consisting of a PTFE surfaced concave plate and matingstainless steel convex plate which accommodate rotation through sliding of the curved surfaces. It allows movement as well as rotation alongany horizontal axis. PTFE Spherical bearings have higher load bearing capacity and can accommodate large displacement and large to angles. PTFE Spherical Bearings are further categorized into three types based on its functions



TYPE

PTFE Spherical Free Sliding Bearing

PTFE Spherical Guided Bearing

Spherical Fixed Bearing

Load Bearing

Yes

Yes

Yes

Movement

In Both Direction

Only in One Direction

No

Rotation

Yes

Yes

Yes
