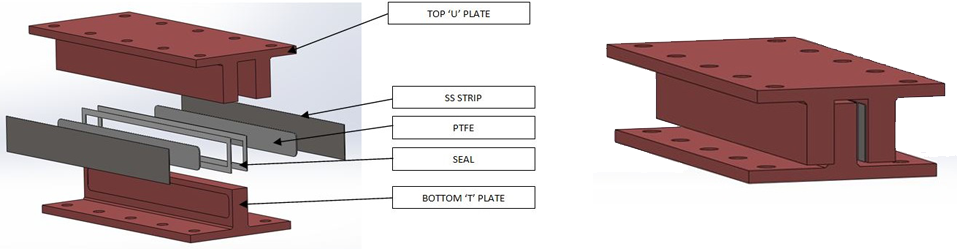

Metallic Guided Bearings


Metallic Guided Bearings
Metallic Guided bearings bears and transmits horizontal force and capable of allowing movement in a direction perpendicular to the direction horizontal force & allows rotation only about an axis perpendicular to the plane of sliding.
Metallic Guided bearings cannot bear or transmit any vertical load.
Metallic Guided Bearings


Metallic Guided Bearings

  • ALLOWABLE CONCRETE PRESSURE AT BEARING TOP AND BOTTOM - 20MPA
• ROTATION 0.01 RADIAN MAX.

NOTE :
ALL THE DIMENSIONS ARE IN MM
DIMENSIONS GIVEN IN THE TABLE ARE INDICATIVE.DESIGN & DIMENSIONS MAY BE MODIFIED BY SBPL
WITHOUT PRIOR NOTICE.
