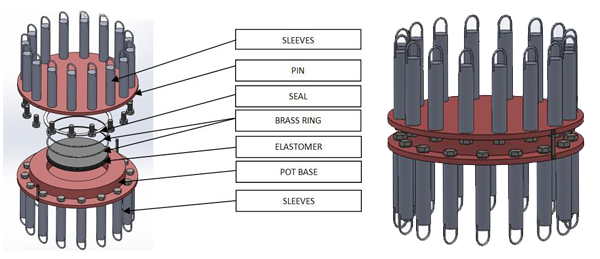

PIN Bearings


PIN Bearing
PIN Bearings

Pin bearing bears and transmits horizontal force along any direction in the horizontal plane & allows rotation about any axis in horizontal plane. Pin bearings cannot bear or transmit any vertical load.


PIN Bearings

PIN Bearings

• ALLOWABLE CONCRETE PRESSURE AT BEARING TOP AND BOTTOM - 20MPA
• ROTATION 0.01 RADIAN MAX.

PIN Bearings
NOTE :
ALL THE DIMENSIONS ARE IN MM
DIMENSIONS GIVEN IN THE TABLE ARE INDICATIVE.DESIGN & DIMENSIONS MAY BE MODIFIED BY SBPL
WITHOUT PRIOR NOTICE.
